Dekatron Tube Tester

A Dekatron Tube Tester

Introduction

Having accumulated a fair few dekatrons over the years I thought it was about time that I built a simple tester to make them spin. This dekatron tester is aimed specifically at double pulse counting and computing tubes with an octal base, be they British, American or Soviet.

This page and its documentation describes my version of the Dekatron Tester. It is fully open design all released under a Creative Commons ShareAlike 4.0 International license.

So you can roll your own entirely or you can buy a complete kit or or a minimal kit or a fully assembled tester - all described below or in the documentation.

Quick Links

• Introduction
• Tester powered up
• Documentation
• Kits
• Contact

Tester Powered Up

Using the Dekatron tester with the Sgitheach CRT Tester you configure the tester as follows:

• HT configured for 300V operation
• Flyback enabled
• PDA multiplier enabled
• The +600V PDA tap is selected

The Dekatron tester is plugged into the CRT tester jacks as follows (assuming you are using the CRT Tester case):

• The red jack with the HT wire is plugged into the 300V output jack on the back panel and its partner green jack plugged into the adjacent green ground jack
• The red jack with the thicker EHT wire is plugged into the PDA jack on the side panel

It is not necessary to use the CRT Tester as the power supply. Any power supplies that deliver +300V HT supply and +600V DC supply are likely to be entirely suitable.

Documentation

The design is open source hardware.

You should look in the "/ Dekatron Projects / GC10B Dekatron Tester / " folder.

Here will also find the Eagle 7.7.0 schematics and board layouts, the PCB Gerbers, the STL files for 3D printed parts and DXF files for the laser cut acrylic.

Kit Availability and Prices

The electronics kit is available in two forms:

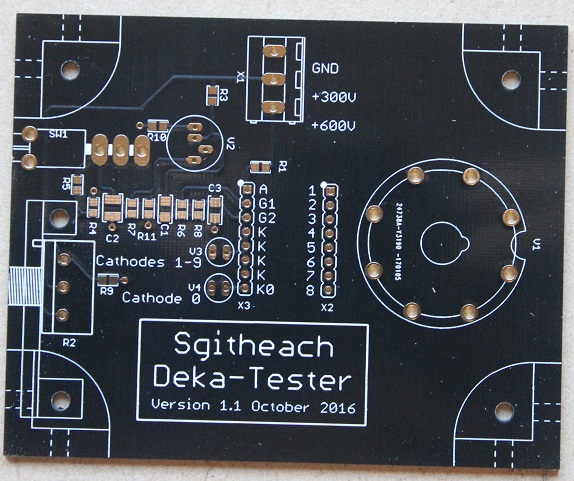

Minimal Electronics Kit

This is the bare PCB only. You will have to buy all the remaining components. I bought them from Farnell (Element14), Digikey and a few parts from Ebay. If you are going down this route then I assume you know what you are doing…

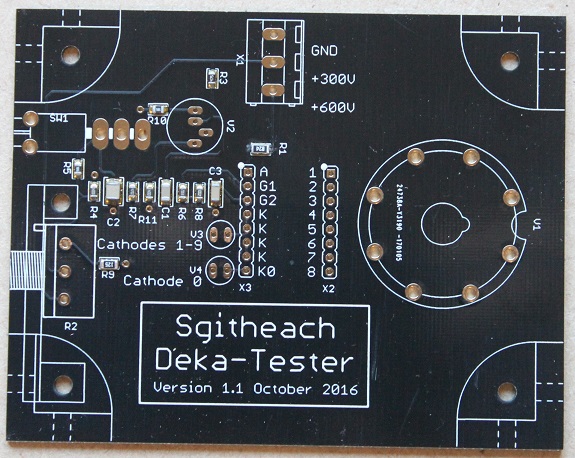

Complete Electronics Kit

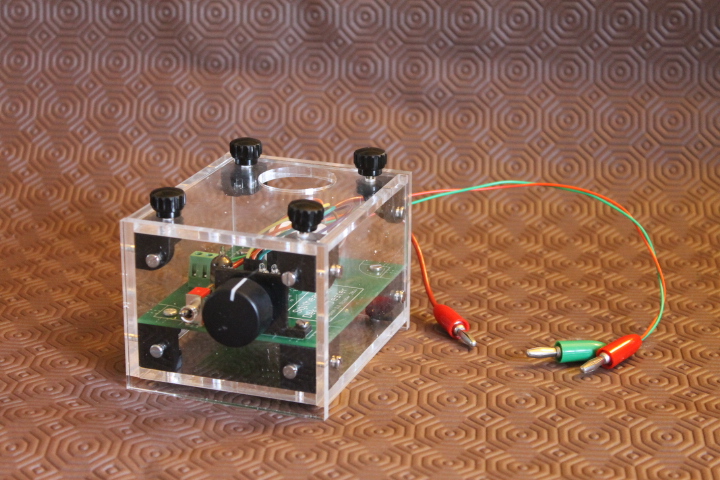

This kit is this PCB with all the SMD parts fitted included are all the through hole components and the complete case kit (laser cut 5mm thick clear acrylic, 3D printed parts, nuts, bolts, wire, octal socket, banana plugs … everything).

I have been asked for a kit with the SMD parts unfitted. I have found that it is far quicker to solder paste a board, pick and place all the SMD parts then pop it in a reflow (toaster) oven, than it is to pick the SMD parts and put them all in bags. It also uses less resources as I'm not printing labels and using polythene bags. So to say the least I am reluctant to supply a SMD unfitted kit.

Price?

The prices of Dekatron Tester kits are here.

Built and Tested

I am also willing to completely build and test the Dekatron tester - please contact me for a cost.

Shipping

Shipping details are here.

Contact

Please contact me with any questions or enquires about ordering or postage.
